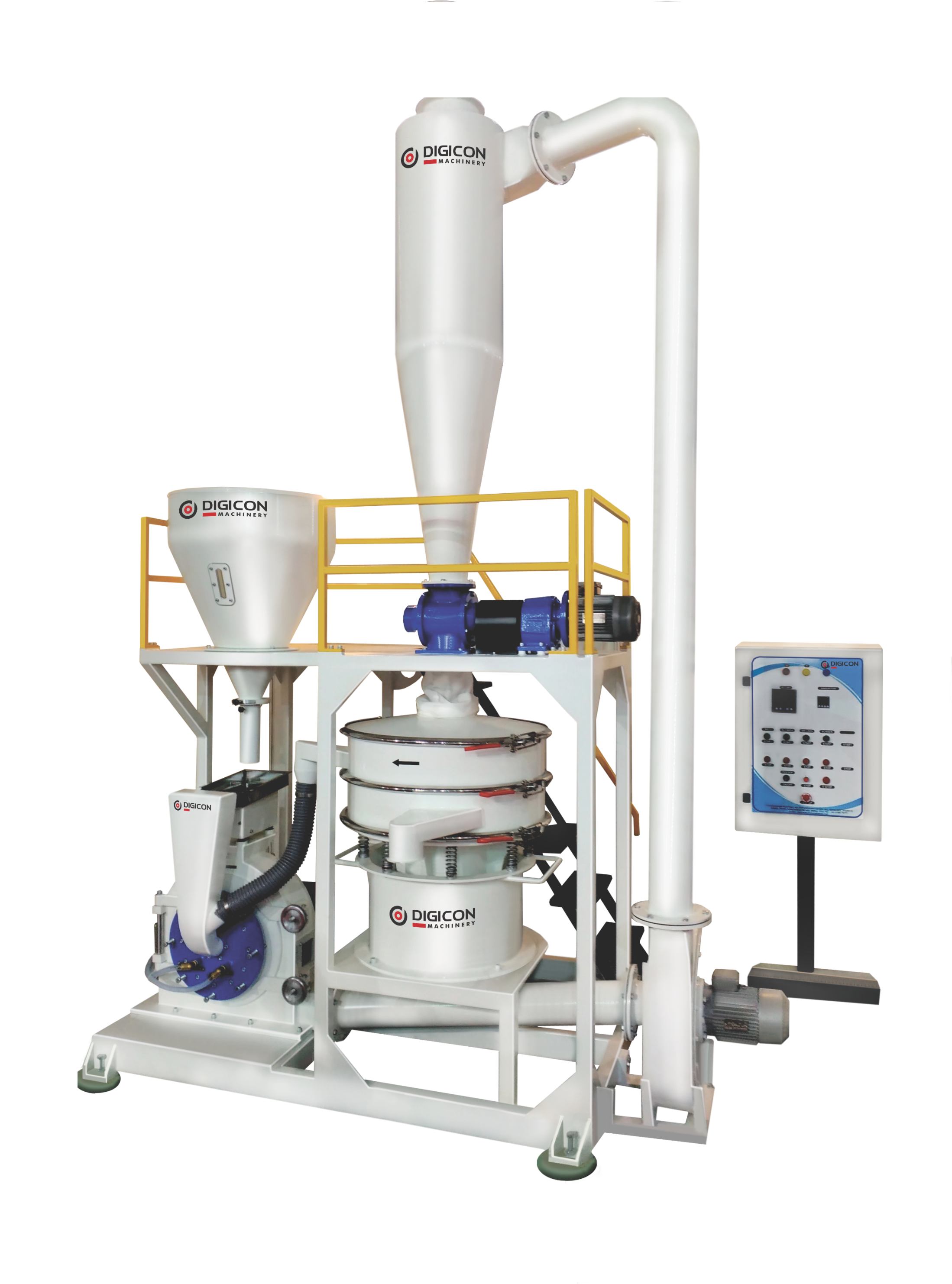

PULVERIZER
Digicon made pulverizer is designed for pulverizing of semi rigid, brittle and impact resistance materials where a powdered product is required. Granulated plastic materials are fed via vibratory feeder into the mill. High speed mill grinds the materials and suction system draw the materials from mill. With the help of proper metering and various screening system desired powder quality to be achieved. Coarse materials from the screen are re-entering into the mill via closed-loop system. Typical applications are the pulverizing of LDPE, LLDPE, RPVC, HDPE, UPVC, PC and various other plastics.
SALIENT FEATURES OF PULVERIZER
- Heavy Duty sturdier design.
- High Output with low power consumption.
- Microprocessor based control system.
- Easy to operate and less Manpower requirements.
- Grinding disc, made of special materials for longer life.
- Better fine materials according to application of plasticizing.
- Easy to change vibro screen for various powder quality.
- Compact design and minimum space utilization.
| Specification | DM 80 | DM 120 | DM 150 | DM 200 | DM 300 |
| Disc Diameter | 300 | 400 | 400 | 600 | 600 |
| Power (kW) | 15 | 30 | 37.5 | 56 | 75 |
| Throughput in kg/hr PVC | 80-100 | 140-160 | 180-200 | 300-350 | 400-450 |
| Throughput in kg/hr LLDPE | 70-80 | 120-140 | 150-170 | 200-250 | 300-350 |
