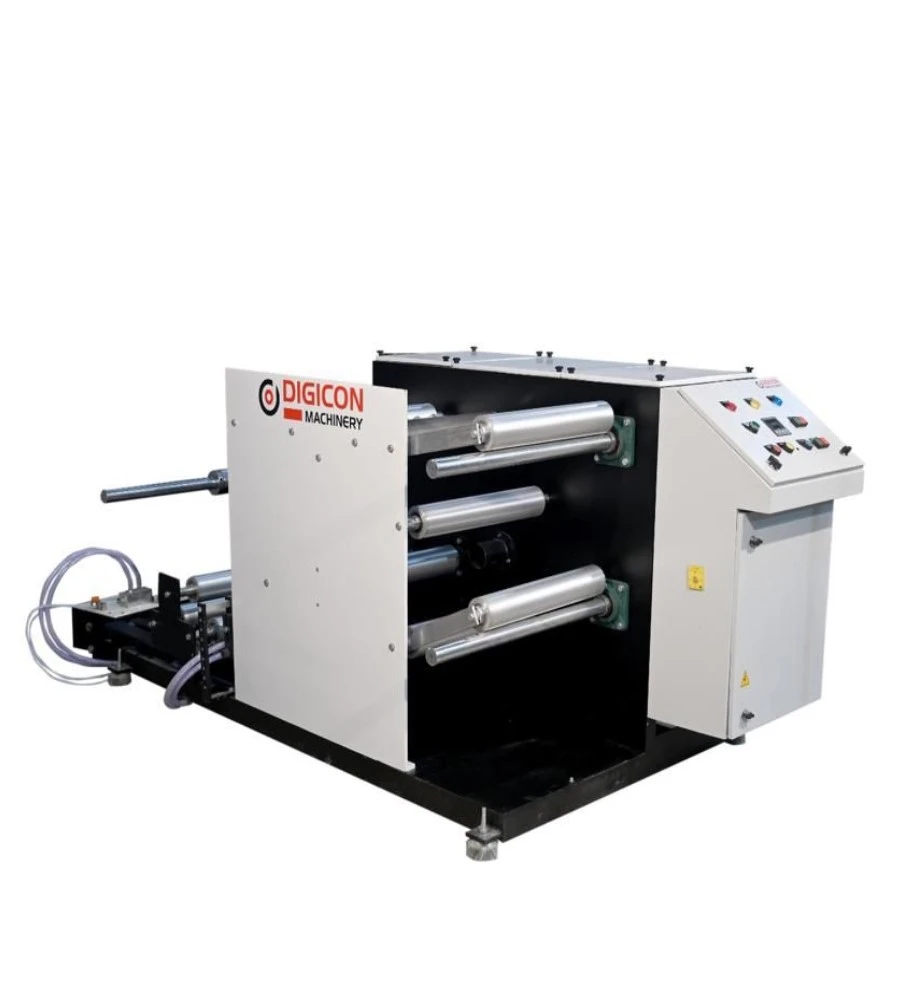

DOCTORING REWINDING MACHINE
The Doctoring Rewinding Machine by Digicon Machinery is an advanced solution for Doctoring Rewinding Machines are mainly used to salvage badly rewound roll produced on slitting rewinding machine or to print fr. Date, Expirydate, Batch No.etcon printed film/ foil/paper by using Ink Jet Printing Machine Equipped with the latest technology, the Doctoring Rewinding Machine from Digicon ensures precision and reliability, making it an essential component for businesses looking to maintain high standards in their production processes.
SALIENT FEATURES OF DOCTORING REWINDING MACHINE
-
Auto Tension Controlling System with
Magnetic Particle Brake & Load cell - On Line Slitting Arrangement
- Electronic Web Guiding System
- DC Drive and Motor on request
- High Speed Model: 250 - 300 mtr/min
- Cantilever Sturdier Design
- Mechanical Brake for uniform Tension
- Statical ly/Dynamical ly Balanced Aluminum Roller
- Hydro-Pneumatic Web Guiding System for Unwind
- Electrical Control Panel with AC Variable Frequency Drive
- Easy Loading and Unloading of Parent Roller
- Provision of Incorporating Ink Jet Printing Machine
| Specification Category | Specification Details |
| Web Width | min.75mm-max.500mm |
| Reel Diameter | max. 400 mm |
| Reel Weight | max 100 kg |
| Rewind Core Dia | 76mm |
| Motor | 2 HP AC |
| Drive | 2 HP AC Variable Frequency Drive |
| Speed | 100 to 150 mtr / min |
